Supercharger Build on my 2.2L G5

Tom

Full Access Member
Joined
Jul 29, 2009
Posts
1,169
Reaction score
0
Location
Houston TX
Well starting my build thread,right now the main use of this thread will be to gather info and keep organized/parts gathering and troubleshoot and all the other fun stuff...If you have parts shoot me a Pm :)
red=ACQUIRED PARTS
Parts List: Updated 7/3
Eaton M62 Supercharger
Supercharger Gasket
Stock LSJ Intake Manifold
Intake Manifold Bottom Mount
Intake Manifold Gasket (Part #12597855)
2.5 Bar Map/Intake Temp Sensor (on upper left of LSJ manifold)
2.5 Bar Pigtail (Part #88988320)
Bosch/LSJ Intercooler Pump
Intercooler Pump Wiring Pigtail or Butt Connecters
Intercooler Pump Mounting Bracket- I will custom fab it.
2007 ss Stock heat Exchanger
Heat Exchanger Brackets
*03 Terminator cobra uses the same H/E pump
42.5# Injectors (recommended)
Injector Harness
Wideband Air/Fuel Ratio Gauge
[color=redBoost/Vacuum Gauge[/color]
Stage 2 Belt (Part# 12597993; requires one rib be cut off)
Custom Idler Pulley with Mounting Bracket
Extended Upper Radiator Hose
Coolant Reservoir Tank (Cobalt or Ion Recommend)
NGK Copper Spark Plugs (Part# LFR6A-11)
SS/SC intake
10ft. x ¾” I.D. Hose
10ft x ¼” I.D. Hose
4ft. x ½” I.D. Hose
Small and Large Hose clamps.
3 x 1/8th NPT ¼” Barb Fittings

• GM Bolts Needed
- 11516342 – LSJ Intake Manifold Mount To Block Bolts -(M8 X 1.25 x 60) (Qty 2)
- 11589214 – LSJ Supercharger to Intake Manifold Bolts (Qty4)
- 11900248 – LSJ TB To SC Bolts (Qty4)

• Standard Bolts Needed (Not GM)
- LSJ 1 Bar MAP To Intake Manifold M6 x 1.0 x 25 (Qty 1)
- LSJ Intake Manifold Mount Bracket To Intake Manifold M10 X 1.50 x 50 (Qty 1)
- LSJ Rear IC Pump Bracket To Intake Manifold Mount M8 X 1.25 X 25 –
- LSJ Front IC Pump Bracket To Rear IC Pump Bracket M8 X 1.25 X 35 – (Qty 2)
- LSJ Idler Pulley To Block M10 X 1.50 x 75 (Qty 1)
- LSJ Idler Pulley To Alternator Bracket M8 x 1.25 X 25 (Qty 1)
- LSJ Intake Manifold To Block M6 x 1.0 X 75 (Qty 2)
- LSJ Alternator Bracket To Block M8 X 1.25 X 130 (Qty 3)
- LSJ SC Bypass Valve To SC M8 X 1.25 X 20 (Qty 2)
- LSJ Lower Tensioner To Bracket M8 x 1.25 x 35
- LSJ Upper Tensioner To Bracket M8 X 1.25 x 40… not standard bolt though. Has to be metric hex socket bolt.
- LSJ Intake Manifold Bolts M6 X 1.00 x 25 (Qty 4)

___________________________________________

References:
http://www.cobaltss.net/forums/showthread.php?t=80620
http://www.cobaltss.net/forums/showthread.php?t=127891&highlight=2.2+supercharge
http://www.cobaltss.net/forums/showthread.php?t=210641&highlight=2.2+supercharge
http://www.cobaltss.net/forums/showthread.php?t=15721&highlight=supercharger
http://www.cobaltss.net/forums/showthread.php?t=126938&highlight=supercharger

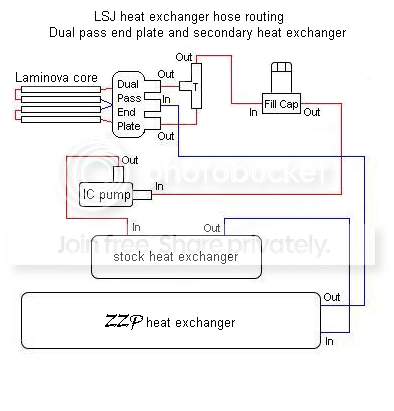

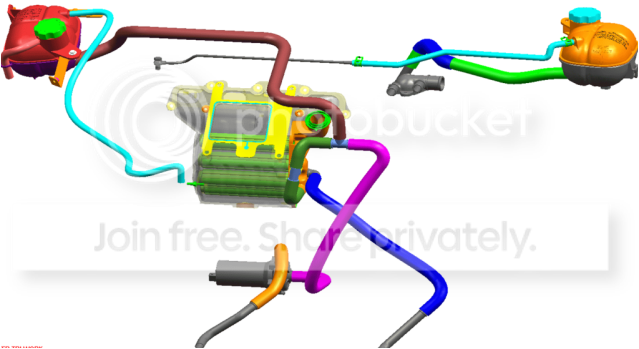

Diagrams:




___________________________________
Notes:
Price reference (tFrom a cobalt ss member,its over priced, If you ask me)
SUPERCHARGER WITH 10K $300
INTAKE MANIFOLD WITH 10K $250
INTAKE MANIFOLD GASKET NEW GM $40
60# INJECTORS NEW OTTP $159.99
FUEL INJECTOR HARNESS NEW OTTP $30.00
2.8 MODULAR PULLEY SYSTEM NEW OTTP $90.00
OTTP LARGEST HEAT EXCHANGER NEW $175.00
IC PUMP NEW OTTP $115.00
NEW GM BRACKETS FOR THE IC PUMP $100.00
NEW GM COBALT S/C BELT TENSIONER $212.00
GM NEW IDLER $40.00 $20
GM STAGE 2 BELT NEW $49.99
NEW LSJ GM THROTTLE BODY $120.00 $100
NEW GM THROTTLE BODY PIGTAIL $90.00
NEW INJEN COLD AIR INTAKE FROM SUMMIT $256.00
ALL NUTS BOLTS AND MISC FROM GM AROUND $150-$200
___________________________

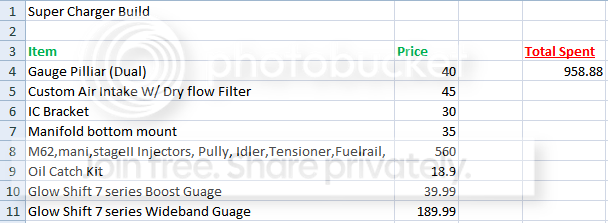

Current Build figures.

__________________________________________________________________


6-21-2010

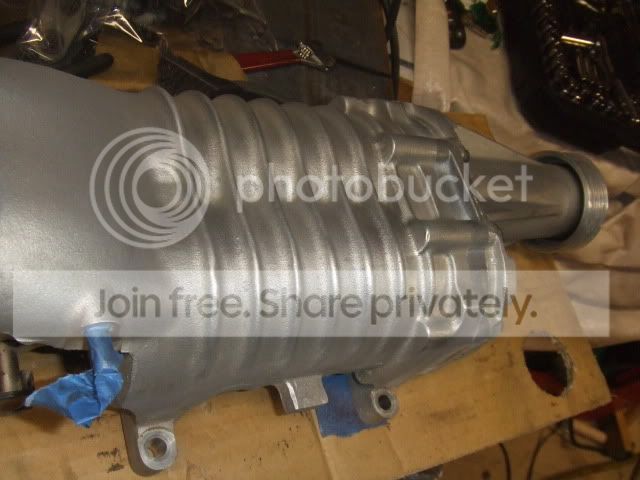

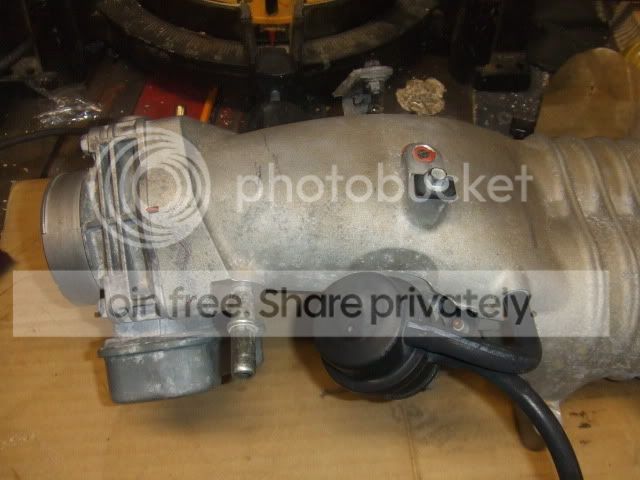

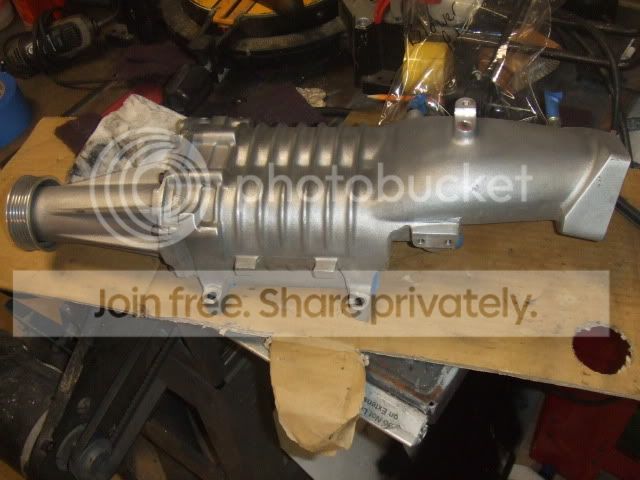

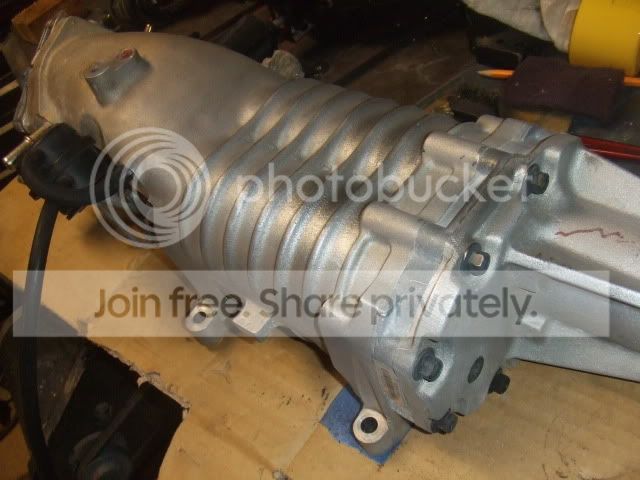

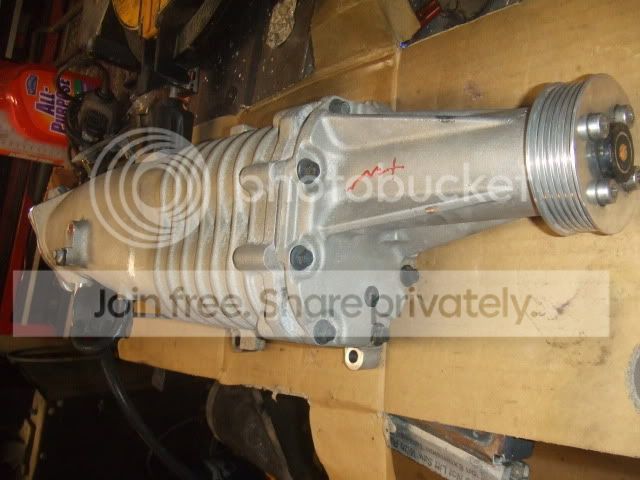

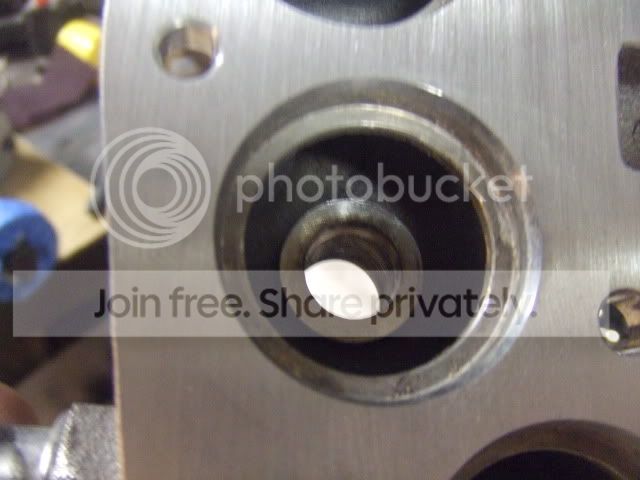

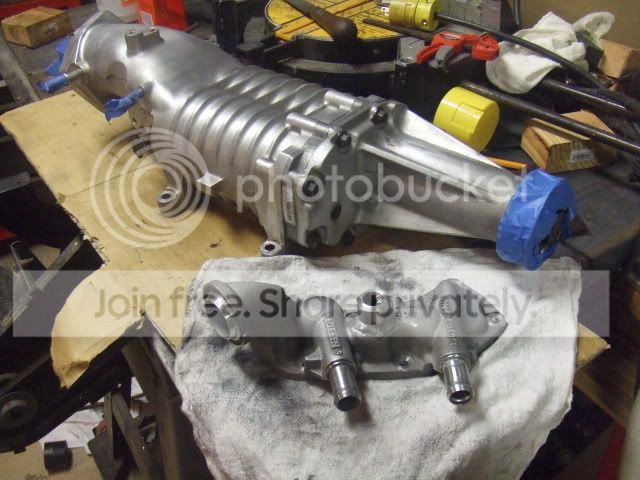

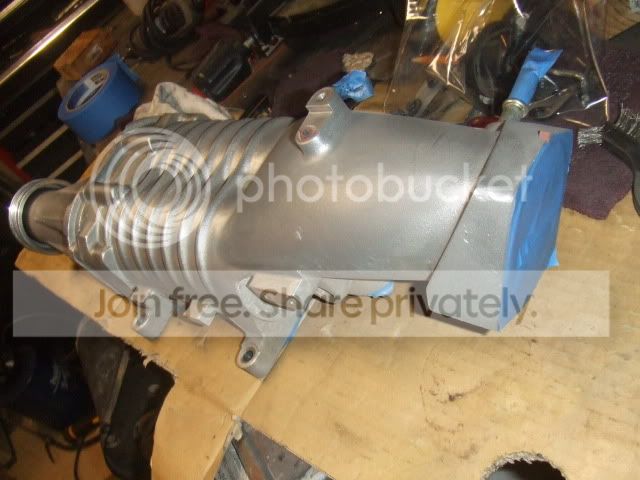

Did some more clean up today, and welded in the dual pass mod on the end plate...

I may just paint the ribs yellow and leave the base metal and hit it with some clear.

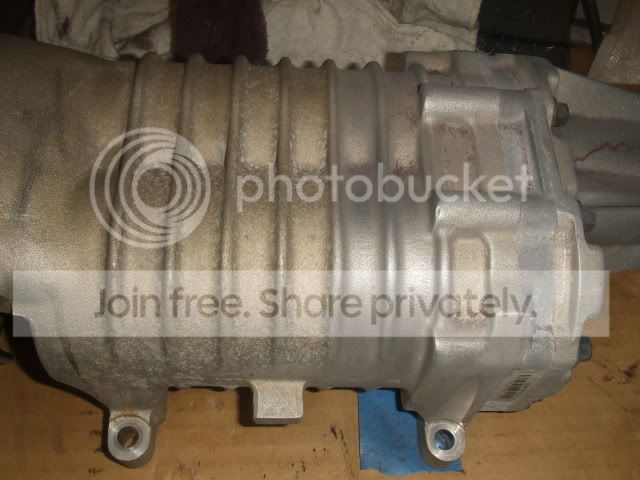

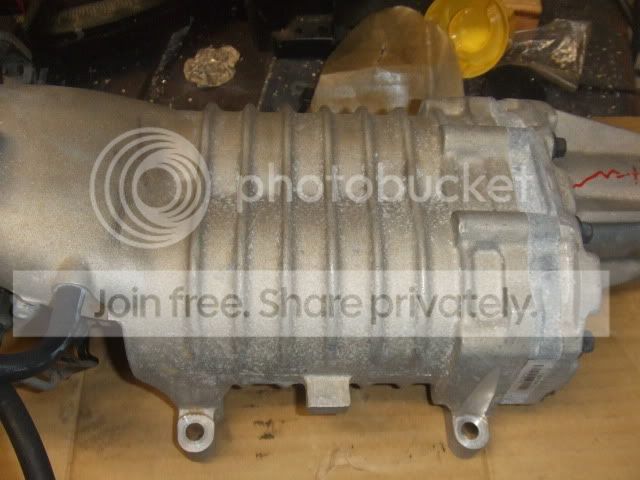

Before




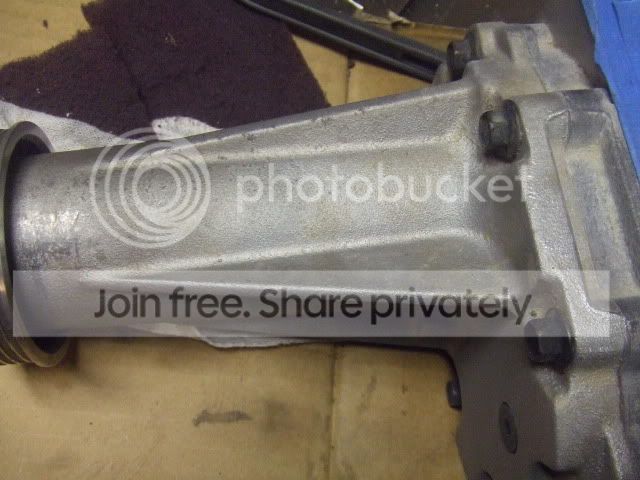

mid way




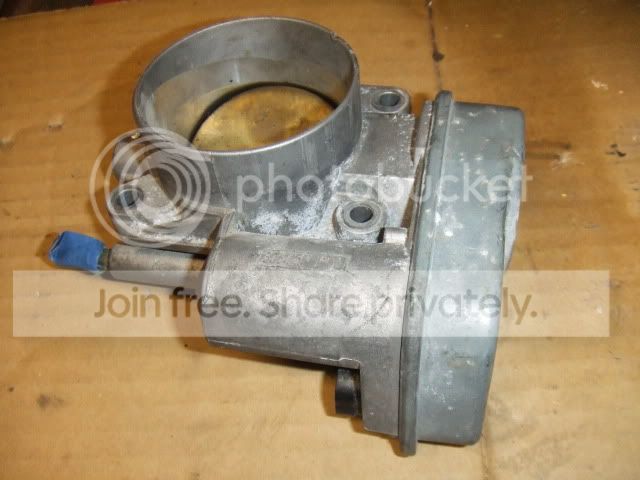

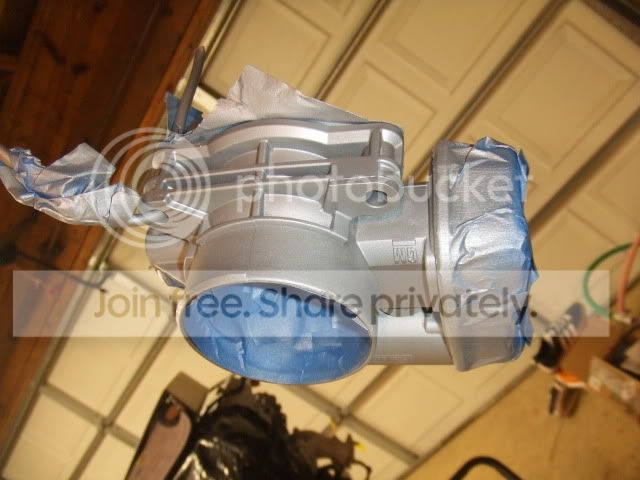

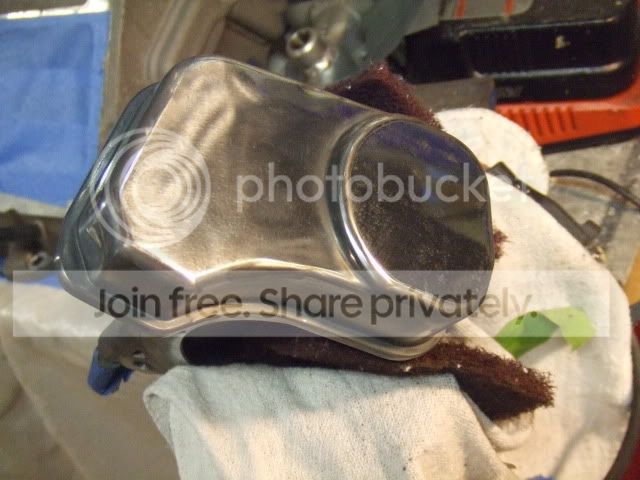

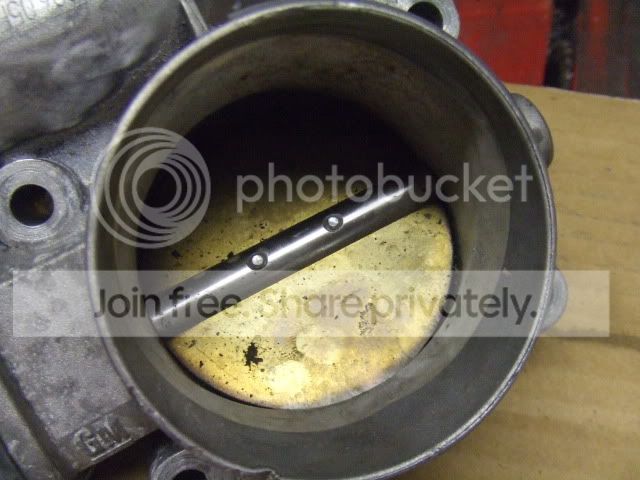

well still not building waiting and waiting for parts to come in...but it gives me time to make things nice....restored the lsj throttle body, final pic will be uploaded tomorrow.

before


after




7-3-2010

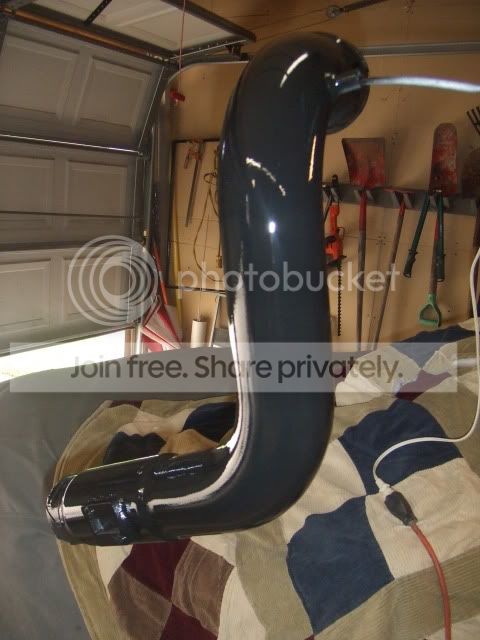

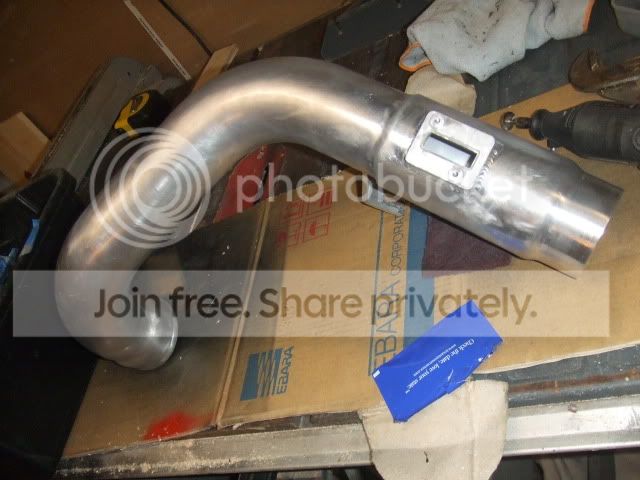

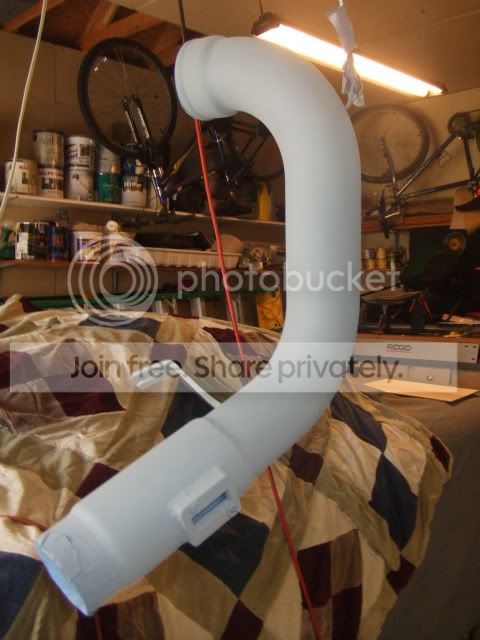

Intake Clean up
Intake came in, seller didnt mention the condition, o well it was $30, came with a crappy dry flow, Im going to replace it with a oiled k&n.

Before

Prep


After

Last edited:

Tom

Full Access Member
Joined
Jul 29, 2009
Posts
1,169
Reaction score
0
Location
Houston TX
whats your goal? Im taking my time, Looking to be built by august.


arman14

DiegoO
Joined
Aug 13, 2009
Posts
5,167
Reaction score
0
Location
Houstonee
I thought you were going to sell the car.
Anyways good luck with the build, I always wanted to do that but I don't have enough mechanical skills:rofl:.


Tom

Full Access Member
Joined
Jul 29, 2009
Posts
1,169
Reaction score
0
Location
Houston TX
I thought you were going to sell the car.
Anyways good luck with the build, I always wanted to do that but I don't have enough mechanical skills:rofl:.

I did lol well sorta, Traded it in for a silverado SS, but instead of coming back the next day with the difference$ and title, I gave him the keys to the truck and said give me my car back, The sentimental bond held me from giving it up last minute, long story lol.

---------- Post added at 09:48 PM ---------- Previous post was at 09:47 PM ----------

i only have 1 advice
do it but do it right @first attempt

Anything worth doing, is worth doing right :)


arman14

DiegoO
Joined
Aug 13, 2009
Posts
5,167
Reaction score
0
Location
Houstonee
I did lol well sorta, Traded it in for a silverado SS, but instead of coming back the next day with the difference$ and title, I gave him the keys to the truck and said give me my car back, The sentimental bond held me from giving it up last minute, long story lol

How much did they offer you for the trade?
I want to trade mine but I know they won't offer more than 3k:rofl::rofl:
