Ram Air for Cooling Front Brakes and Rotors

Discussion in 'Chevy HHR Specific' started by CJ n Shagy, Oct 3, 2010.

  1. CJ n Shagy

    CJ n Shagy Full Access Member

    Posts:
    61
    Likes Received:
    0
    Joined:
    Jul 29, 2009
    Location:
    NW Dallas, TX
    ok here is the drivers side done
    this is to help for the tail of the Dragon and when i play on the back roads and in bad traffic

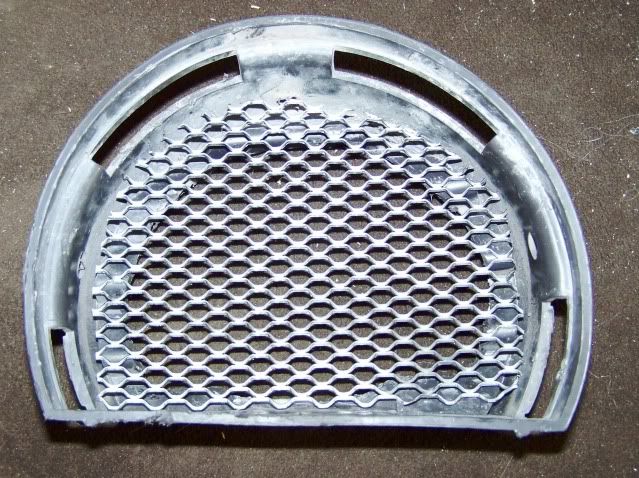

    1. mesh on back of the fog light after i dremeled the hole larger. i may put mesh on front. painted it black

    [​IMG]

    2. the put the pieces together and used small 1/4 long self taping screws (6 per piece) and there is 3 pieces to put together
    i ran a small bead of silicone on the ends

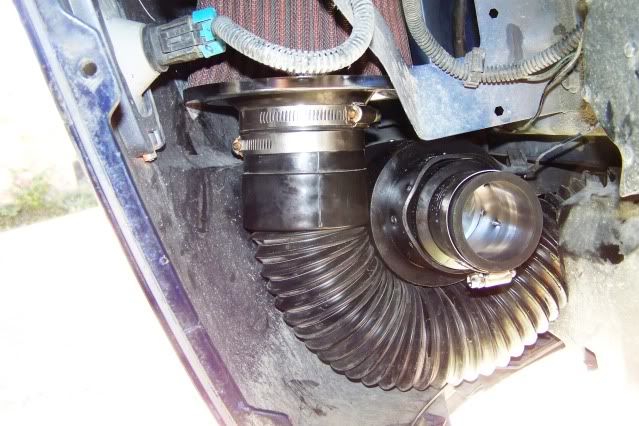

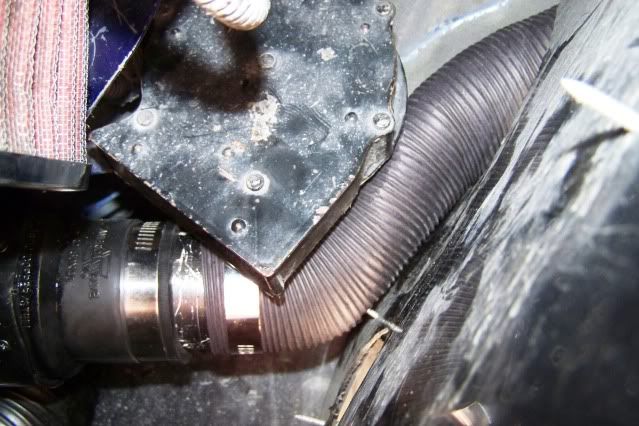

    3. i took off the L and just moved the connetor over to the filter to hook up the flex line and it went right around it and hooked up fine. got my air filter clean as well
    [​IMG]

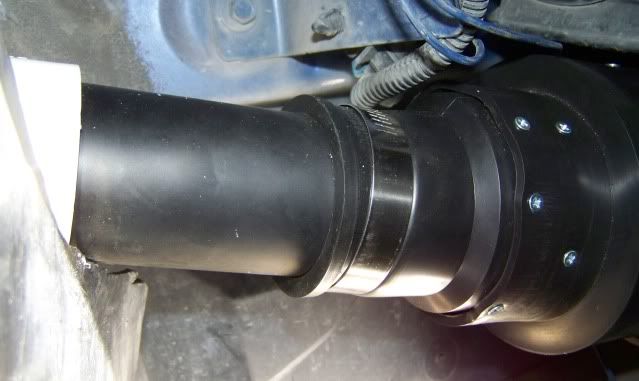

    4. then found out i only need around 5 inches of 2 inch pvc so a connector may work but you need it at least the 2 inch pvc outside diameter
    [​IMG]

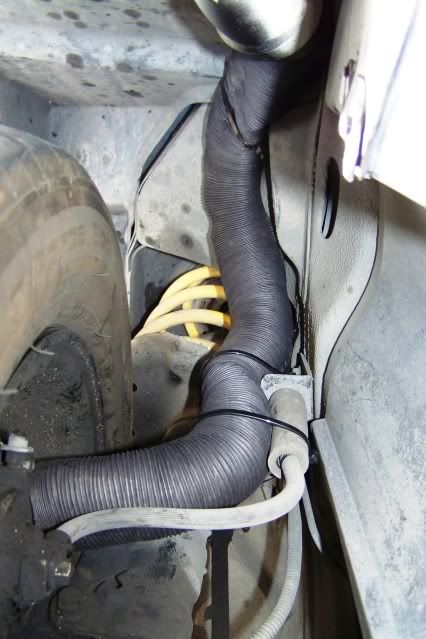

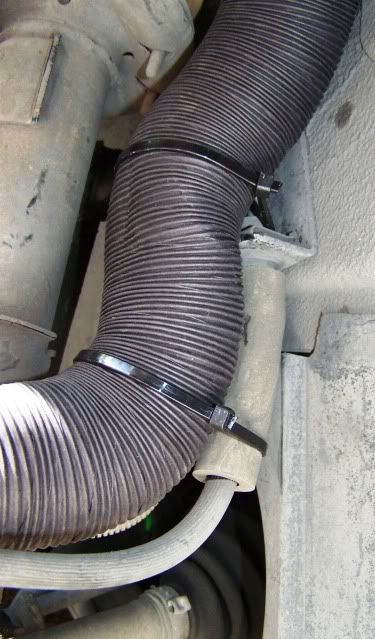

    5. ran it up the side and back of the wall and used some tin snips to cut an angle out so the hose wet thru easily

    [​IMG]

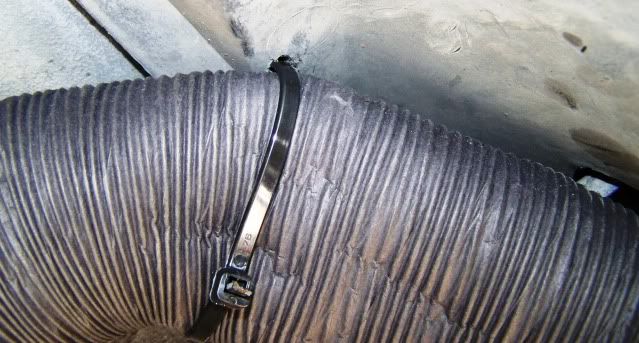

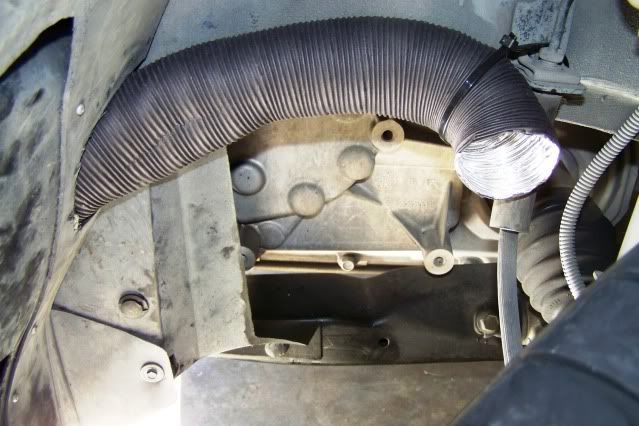

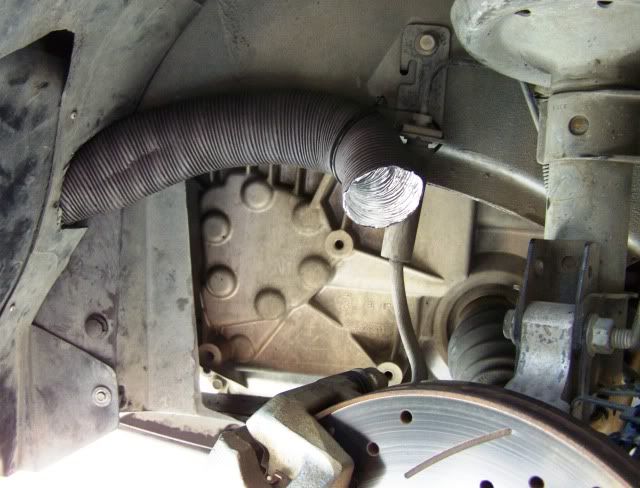

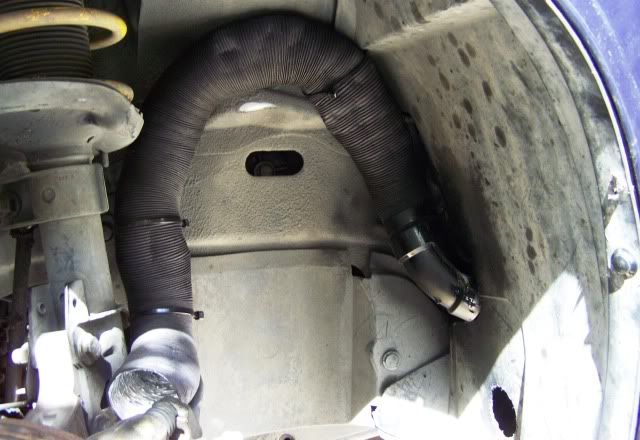

    6. angled it down and tied to the back and angled it to the brakes. it is secure and pointing right at the rotor and pads. will do the other tomorrow
    you can see the tire in the pic, checked w tire on and no issues and looks great

    [​IMG]

    i may put a long shop vacuum suction piece to deflect the air over a wider area. i didnt want to pay 10 to 12 a piece to do this.

    parts
    36 inch Motormite 96034 pre-heater hose from Autozone (used 1/2 on drivers side)- 12.99 (6.50 per side)
    Lowes
    23444- 2 by 1.5 in flex coupling- $4.93
    23455- 4 by 3 in flex downspount connector- 2.95
    23478- 4 by 3 in coupling flexible- 8.77
    66129- 2 pack #28 clamp (22669)- 2.37
    5 inches of 2 inch pvc pipe. i had this laying around-

    $25.50 per side to do this. if i added a bought deflector from a shop vac that would bring it to 35.50 and i think i can find it at garage sales

    last night i went out and did some driving
    heavy traffic and some yankin and banking on some cloverleafs
    then before i got to see GSon at the house i pulled the parking brake a couple notches and drove lil over a mile

    when i stopped, you could smell the brakes were hot from inside the car and the passenger side and was hot hot hot
    you could almost touch the drivers side and no smell. i flicked some tea on the passenger side and it sizzled and nothing on the drivers side so this works and i think it will save my brakes and rotor over the whole lifetime. brakes felt stronger also all night while driving and i am glad i did this
    i know we use our brakes more than we think especially in heavy traffic in rush hour times
    definitely when out on the back roads doing curve driving which i do monthly and sometimes more

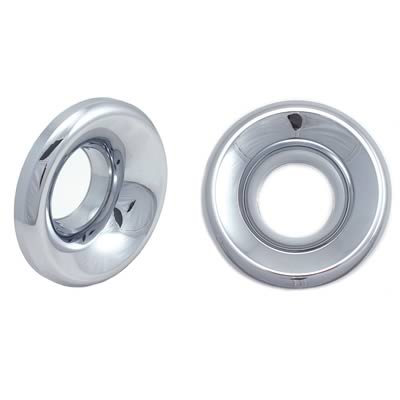

    Spectre has this if you dont use fog lights to hook the tubes to
    Spectre Performance 8788 - Spectre Performance Air Intake Velocity Funnels
    this would work great too and what i would have done if i didnt use the fog light.

    [​IMG]

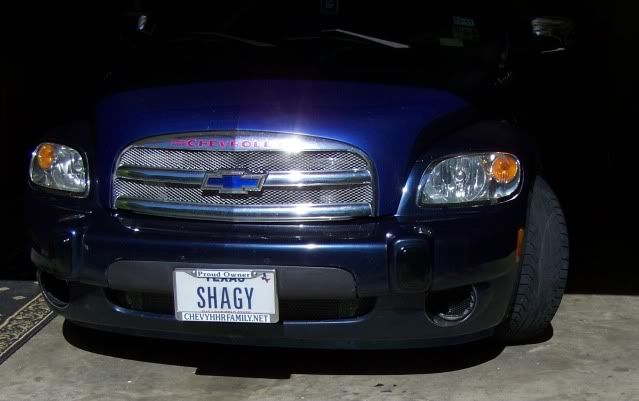

    this one went on the drivers side where the fog light went
    [​IMG]

    Last edited: Oct 3, 2010
  2. Intmd83r

    Intmd83r Full Access Member

    Age:
    36
    Posts:
    459
    Likes Received:
    0
    Joined:
    Sep 13, 2010
    Location:
    New Hampshire
    thats some nascar shit right there lol

  3. CJ n Shagy

    CJ n Shagy Full Access Member

    Posts:
    61
    Likes Received:
    0
    Joined:
    Jul 29, 2009
    Location:
    NW Dallas, TX
    laugh at it
    but
    i believe in simple, it works and it will save my rotors and brakes of the lifetime of the car
    and
    these kits were 250 to 450 on the internet
    i did 2 for less than $60 and still not done

    if you know anything about physics,,, 5 inch opening down to a 2 inch increases the velocity and more efficient and the reason i did it this way.
    i am going to try and find some 2 inch shop vacuum ends that are 10 to 12 inches wide to use to spread the air over a larger area

    Last edited: Oct 3, 2010
  4. cobalt123

    cobalt123 Platinum Member

    Age:
    31
    Posts:
    15,202
    Likes Received:
    4
    Joined:
    Jul 18, 2009
    Location:
    Tyler Texas
    thanks for posting very inginuitve

  5. YelloEye

    YelloEye Super Moderator Staff Member

    Posts:
    7,601
    Likes Received:
    23
    Joined:
    Jul 18, 2009
    Location:
    Renton, WA
    This is a great idea, Powell was working on something similar for the delta bodies a while back I think.

  6. camopaint0707

    camopaint0707 Full Access Member

    Posts:
    676
    Likes Received:
    0
    Joined:
    Sep 7, 2009
    Location:
    NY
    i have read about that idea before. what kind of ducting did you use???

  7. CJ n Shagy

    CJ n Shagy Full Access Member

    Posts:
    61
    Likes Received:
    0
    Joined:
    Jul 29, 2009
    Location:
    NW Dallas, TX
    parts are in the first post
    36 inch Motormite 96034 pre-heater hose from Autozone (used 1/2 on drivers side)- 12.99 (6.50 per side)

  8. Tuner923

    Tuner923 Full Access Member

    Posts:
    4,466
    Likes Received:
    0
    Joined:
    Jul 20, 2009
    Location:
    Norristown, PA

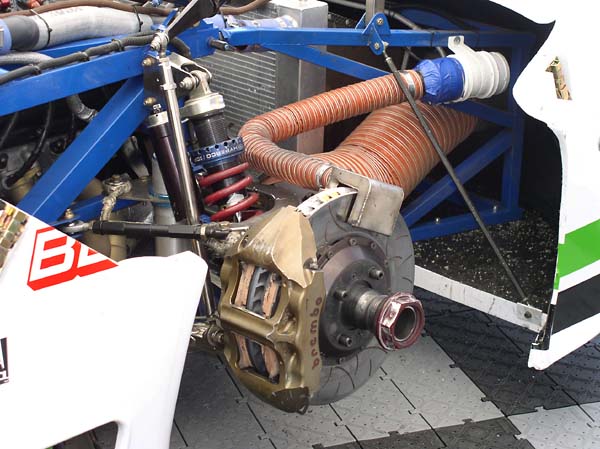

    [​IMG]

    ---------- Post added at 09:41 PM ---------- Previous post was at 09:38 PM ----------

    [​IMG]

  9. CJ n Shagy

    CJ n Shagy Full Access Member

    Posts:
    61
    Likes Received:
    0
    Joined:
    Jul 29, 2009
    Location:
    NW Dallas, TX
    i have seen both of those pics
    i am not done yet and will tweak till i get it right

  10. Tuner923

    Tuner923 Full Access Member

    Posts:
    4,466
    Likes Received:
    0
    Joined:
    Jul 20, 2009
    Location:
    Norristown, PA
    i'd like to see your completely finished project. i think it's fascinating. maybe i'll give it a go but with some type of electric powered system
