dman090
Platinum Member
ill bring some double stuffed oreos with me
2.2L LAP/L61 S/C Technical Build Thread
- Thread starter cobalt123
- Start date
cobalt123
Platinum Member
cool, i thought it would be funny if someone bought that bag of oreos
dman090
Platinum Member
haha yah, gotta make myself useful somehow
cobalt123
Platinum Member
it wont be bad
dman090
Platinum Member
well i go at things the long and hardest way possible.. until someone shows me that it could have been much more simpler than that lol
cobalt123
Platinum Member
thats why juan will be there
dman090
Platinum Member
well you and i can set around and eat oreos then lol ive heard he is quick at this install
cobalt123
Platinum Member
im gonna help.
cobalt123
Platinum Member
by painting a set of tits on my neighbors car
---------- Post added at 07:34 PM ---------- Previous post was at 07:18 PM ----------
wanted to save this:
This list is broken down to bare essentials for supercharging only and then adds the optional exhaust and optional wiper conversion lists. What type of injectors, pulley’s and other items you choose to change are strictly up to you. This is the list that I used and have modified it for a universal parts list.
Supercharger Related Parts Only
(Bare Essentials To SC Your 2.2 or 2.4)
New GM Parts
12575463 – LSJ TB Gasket
11900248 – LSJ TB To SC Bolts (4)
12584342 – LSJ Supercharger Gasket
12594387 – LSJ IC Pump Insulator
89046833 – IC Pump Connector
12597855 – LSJ Intake Manifold Gasket
12597993 – LSJ Stage 2 Serpentine Belt
15247280 – LSJ Upper Radiator Hose
15411879 – 2005 Cavalier Injector Wiring Harness
15253932 – LSJ Power Brake Booster Vacuum Hose
12584369 – LSJ TB To Purge Solenoid Tube
12585150 – LSJ IC Pump Rear Bracket To Intake Manifold Mount
12586367 – LSJ IC Pump Front Bracket To Rear Bracket
12586632 – LSJ Lower Intake Manifold Mount
11516342 – LSJ Intake Manifold Mount To Block Bolts (2)
11589214 – LSJ Supercharger to Intake Manifold Bolts (4)
12345982 – Genuine GM Supercharger Oil (Qty 2) 4 oz ea))
Purchasing the LSJ power brake booster hose takes care of 2 issues. I cut off the ends of my 2.2 hose and used it as a PCV hose from the valve cover to the LSJ air intake hose. It gives you the correct hose from your power brake booster to SC and gives you a factory looking formed hose for your PCV hose.
New Non- GM Parts
ZZP Heat Exchanger
GlowShift Vacuum | Boost Gauge
AEM Wideband Air | Fuel Ratio Gauge
OTTP 2.9 Polished Pulley (For Stage 2 Hub)
M-8501-L54 Ford Racing Intercooler Pump
NGK Copper Spark Plugs (Part# LFR6A-11) (Also one step colder)
Copper plugs are better than Iridium plugs or any other plugs for supercharged applications. People have gaps anywhere from .035 to .040. They come .040 and that is what I am using.
Used Parts
Eaton M62 Supercharger
GM Stage 2 Injectors (42lbs)
Stock LSJ Air Intake
Stock LSJ Tensioner
Stock LSJ Idler Pulley
Stock LSJ Throttle Body
Stock LSJ Intake Manifold
Stock LSJ Alternator Bracket
Optional Parts
ZZP Triple Gauge Pod
Aeroforce Interceptor Gauge
Injector Harness
I used the 2005 Cavalier injector wiring harness because it came with the proper connectors for using the original GM 42.5 lb Stage 2 injectors. I did have to splice my MAP sensor connector in from my original harness as I started out with the stock MAP sensor.
MAP Sensor
You can choose to use 3 different MAP sensors for your conversion. Which MAP sensor you choose will also depend on the connector needed to be used.
Stock MAP
This MAP sensor fits into the LSJ intake manifold, but you must modify the opening in the sensor where it screws into the intake. How I modified the sensor is in my SC build thread. This is the least expensive option and is the least hassle option.
LSJ 1 Bar MAP
This is the MAP sensor that is used in the SC on the stock LSJ. We can take that sensor and use it in the LSJ intake manifold. You will need to modify a means to secure it and also seal it to the LSJ intake manifold. How I modified this sensor to fit my car is also in my SC build thread. I would honestly say this is the least optimal choice out of the 3 possibilities for me.
LSJ 2.5 Bar MAP
This is the real MAP sensor used on the stock LSJ in the intake manifold. It best fits the stock LSJ intake manifold (obviously). This MAP sensor also has a temp sensor, otherwise known as IAT2 (Intake Air Temperature 2). Our cars cannot read the temp without modification. How I did the 2.5 bar MAP sensor conversion to read IAT2’s is also in my SC build thread.
Throttle Body Connector
If you are using the LSJ throttle body the connector you’ll need to have is an 8 pin. Regardless of what connector you do have or if you have to purchase the 8 pin, you will need to wire them for the LSJ TB.
2005 – 2006 2.2’s have an 8 pin connector. No new connector is needed.
2007+ 2.2’s have a 6 pin connector and you will need the 8 pin connector.
2006 – 2007 2.4’s have an 8 pin connector. No new connector is needed.
2008+ 2.4’s have a 6 pin connector and you will need the 8 pin connector.
If you need the 8 pin connector you’ll need the one below.
88986255 – LSJ 8 Pin TB Connector
Supercharger Cooling System
New GM Parts
22697069 – LSC SC Coolant Reservoir
15076936 – LSJ SC Coolant Reservoir Cap
15271970 – LSJ SC Coolant Reservoir Bracket
22697111 – LSJ SC Coolant Reservoir Overflow Hose
22699879 – LSJ SC Coolant Reservoir Inlet To Top Intake Manifold End Plate Hose
22707607 – LSJ Bottom Intake Manifold End Plate To Intercooler Pump Outlet Hose
Hose routing is with using ZZP heat exchanger only with 10 feet of ¾ heater hose. The house routing diagram I used is in my SC build thread.
First hose went from LSJ SC coolant reservoir outlet to ZZP heat exchanger inlet.
Second hose went from intercooler pump inlet to ZZP heat exchanger outlet.
I chose the stock SC cooling system for now. If you choose to use option B or any other alternative then you will need different hoses and lengths of hose.
I am running a 2.9 pulley with the ZZP heat exchanger only and my IAT2 temps are within +20 to +30 above ambient temp (which is optimal). Of course in traffic or during heavy WOT runs the temps are higher as expected (which is normal). This cooling method is very adequate.
Standard Bolts Needed (Not GM)
MAP To Intake Manifold
M6 x 1.0 x 25 (Qty 1)
LSJ Intake Manifold Mount Bracket To Intake Manifold
M10 X 1.50 x 50 (Qty 1)
LSJ Rear IC Pump Bracket To Intake Manifold Mount
M8 X 1.25 X 25 – (Qty 2)
LSJ Front IC Pump Bracket To Rear IC Pump Bracket
M8 X 1.25 X 35 – (Qty 2)
LSJ Idler Pulley To Alternator Bracket
M8 x 1.25 x 25
LSJ Intake Manifold To Block
M6 x 1.0 X 75 (Qty 2)
M6 x 1.0 x 25 (Qty 5)
LSJ Alternator Bracket To Block
M8 X 1.25 X 130 (Qty 3)
LSJ SC Bypass Valve To SC
M8 X 1.25 X 20 (Qty 2)
LSJ Tensioner Lower To Alternator Bracket
M8 x 1.25 x 35
LSJ Tensioner Upper To Alternator Bracket
M8 X 1.25 x 40… not standard bolt though. Has to be metric hex socket bolt.
LSJ SC Reservoir Bracket To SC
M6 x 1.0 x 15 (Qty 2)
LSJ SC Reservoir To SC Reservoir Bracket
M6 x 1.0 x 15 (Qty 2)
End of bare essentials list to supercharge your 2.2 or 2.4. The rest of the list below is simply optional.
------------------------------------------------------------------------------------------------------------------------------------------
Exhaust Parts (Optional)
GM Parts
90537953 – LSJ Exhaust Manifold Heat Shield
15231157 – LSJ Downpipe To Cat Back Gasket
15235773 – LSJ Exhaust Manifold To Downpipe Gasket
Use your stock 2.2 or 2.4 exhaust manifold gasket, or buy new, as if you used the LSJ exhaust manifold gasket it wouldn’t fit properly and you would have an exhaust leak and/or noise.
Used Parts
Stock LSJ Downpipe
Stock LSJ Exhaust Manifold
The stock LSJ downpipe works on any manual shift car. It does not fit the automatic because of the way the automatic engine sits in the vehicle.
The LSJ exhaust manifold and LSJ downpipe are much bigger to allow more exhaust to exit the engine. This is important as you are forcing more air into the engine with the supercharger so you need to provide adequate output as well. Feel free to purchase your aftermarket selection of header/dp combo.
Windshield Wiper Conversion (Optional)
GM Parts
22729469 – LSJ Windshield Washer Container
22732432 – LSJ Wiper Cowl To Washer Container Hose
You’re moving the LSJ air intake to the left side of the vehicle and that is where the 2.2 and 2.4 windshield wiper container is. The container I listed includes a new pump, grommet, cap and hose to attach to wiper cowl hose. The wiper cowl to container hose I list is the original GM hose on the LSJ that goes from the left side of the wiper cowl (where ours is) and takes it to the right side where it meets up with the LSJ washer container that I list. As far as the connector for the pump, I cut the end of the connector off and added new wire to loom it from the left side of the car to the right side of the car to the new container location. I ran the loom across the top of the inside of the radiator support where there is already a loom running for something else. I ran it inside its own loom and wire tired to the existing loom.
---------- Post added at 07:34 PM ---------- Previous post was at 07:18 PM ----------
wanted to save this:
This list is broken down to bare essentials for supercharging only and then adds the optional exhaust and optional wiper conversion lists. What type of injectors, pulley’s and other items you choose to change are strictly up to you. This is the list that I used and have modified it for a universal parts list.
Supercharger Related Parts Only
(Bare Essentials To SC Your 2.2 or 2.4)
New GM Parts
12575463 – LSJ TB Gasket
11900248 – LSJ TB To SC Bolts (4)
12584342 – LSJ Supercharger Gasket
12594387 – LSJ IC Pump Insulator
89046833 – IC Pump Connector
12597855 – LSJ Intake Manifold Gasket
12597993 – LSJ Stage 2 Serpentine Belt
15247280 – LSJ Upper Radiator Hose
15411879 – 2005 Cavalier Injector Wiring Harness
15253932 – LSJ Power Brake Booster Vacuum Hose
12584369 – LSJ TB To Purge Solenoid Tube
12585150 – LSJ IC Pump Rear Bracket To Intake Manifold Mount
12586367 – LSJ IC Pump Front Bracket To Rear Bracket
12586632 – LSJ Lower Intake Manifold Mount
11516342 – LSJ Intake Manifold Mount To Block Bolts (2)
11589214 – LSJ Supercharger to Intake Manifold Bolts (4)
12345982 – Genuine GM Supercharger Oil (Qty 2) 4 oz ea))
Purchasing the LSJ power brake booster hose takes care of 2 issues. I cut off the ends of my 2.2 hose and used it as a PCV hose from the valve cover to the LSJ air intake hose. It gives you the correct hose from your power brake booster to SC and gives you a factory looking formed hose for your PCV hose.
New Non- GM Parts
ZZP Heat Exchanger
GlowShift Vacuum | Boost Gauge
AEM Wideband Air | Fuel Ratio Gauge
OTTP 2.9 Polished Pulley (For Stage 2 Hub)
M-8501-L54 Ford Racing Intercooler Pump
NGK Copper Spark Plugs (Part# LFR6A-11) (Also one step colder)
Copper plugs are better than Iridium plugs or any other plugs for supercharged applications. People have gaps anywhere from .035 to .040. They come .040 and that is what I am using.
Used Parts
Eaton M62 Supercharger
GM Stage 2 Injectors (42lbs)
Stock LSJ Air Intake
Stock LSJ Tensioner
Stock LSJ Idler Pulley
Stock LSJ Throttle Body
Stock LSJ Intake Manifold
Stock LSJ Alternator Bracket
Optional Parts
ZZP Triple Gauge Pod
Aeroforce Interceptor Gauge
Injector Harness
I used the 2005 Cavalier injector wiring harness because it came with the proper connectors for using the original GM 42.5 lb Stage 2 injectors. I did have to splice my MAP sensor connector in from my original harness as I started out with the stock MAP sensor.
MAP Sensor
You can choose to use 3 different MAP sensors for your conversion. Which MAP sensor you choose will also depend on the connector needed to be used.
Stock MAP
This MAP sensor fits into the LSJ intake manifold, but you must modify the opening in the sensor where it screws into the intake. How I modified the sensor is in my SC build thread. This is the least expensive option and is the least hassle option.
LSJ 1 Bar MAP
This is the MAP sensor that is used in the SC on the stock LSJ. We can take that sensor and use it in the LSJ intake manifold. You will need to modify a means to secure it and also seal it to the LSJ intake manifold. How I modified this sensor to fit my car is also in my SC build thread. I would honestly say this is the least optimal choice out of the 3 possibilities for me.
LSJ 2.5 Bar MAP
This is the real MAP sensor used on the stock LSJ in the intake manifold. It best fits the stock LSJ intake manifold (obviously). This MAP sensor also has a temp sensor, otherwise known as IAT2 (Intake Air Temperature 2). Our cars cannot read the temp without modification. How I did the 2.5 bar MAP sensor conversion to read IAT2’s is also in my SC build thread.
Throttle Body Connector
If you are using the LSJ throttle body the connector you’ll need to have is an 8 pin. Regardless of what connector you do have or if you have to purchase the 8 pin, you will need to wire them for the LSJ TB.
2005 – 2006 2.2’s have an 8 pin connector. No new connector is needed.
2007+ 2.2’s have a 6 pin connector and you will need the 8 pin connector.
2006 – 2007 2.4’s have an 8 pin connector. No new connector is needed.
2008+ 2.4’s have a 6 pin connector and you will need the 8 pin connector.
If you need the 8 pin connector you’ll need the one below.
88986255 – LSJ 8 Pin TB Connector
Supercharger Cooling System
New GM Parts
22697069 – LSC SC Coolant Reservoir
15076936 – LSJ SC Coolant Reservoir Cap
15271970 – LSJ SC Coolant Reservoir Bracket
22697111 – LSJ SC Coolant Reservoir Overflow Hose
22699879 – LSJ SC Coolant Reservoir Inlet To Top Intake Manifold End Plate Hose
22707607 – LSJ Bottom Intake Manifold End Plate To Intercooler Pump Outlet Hose
Hose routing is with using ZZP heat exchanger only with 10 feet of ¾ heater hose. The house routing diagram I used is in my SC build thread.
First hose went from LSJ SC coolant reservoir outlet to ZZP heat exchanger inlet.
Second hose went from intercooler pump inlet to ZZP heat exchanger outlet.
I chose the stock SC cooling system for now. If you choose to use option B or any other alternative then you will need different hoses and lengths of hose.
I am running a 2.9 pulley with the ZZP heat exchanger only and my IAT2 temps are within +20 to +30 above ambient temp (which is optimal). Of course in traffic or during heavy WOT runs the temps are higher as expected (which is normal). This cooling method is very adequate.
Standard Bolts Needed (Not GM)
MAP To Intake Manifold
M6 x 1.0 x 25 (Qty 1)
LSJ Intake Manifold Mount Bracket To Intake Manifold
M10 X 1.50 x 50 (Qty 1)
LSJ Rear IC Pump Bracket To Intake Manifold Mount
M8 X 1.25 X 25 – (Qty 2)
LSJ Front IC Pump Bracket To Rear IC Pump Bracket
M8 X 1.25 X 35 – (Qty 2)
LSJ Idler Pulley To Alternator Bracket
M8 x 1.25 x 25
LSJ Intake Manifold To Block
M6 x 1.0 X 75 (Qty 2)
M6 x 1.0 x 25 (Qty 5)
LSJ Alternator Bracket To Block
M8 X 1.25 X 130 (Qty 3)
LSJ SC Bypass Valve To SC
M8 X 1.25 X 20 (Qty 2)
LSJ Tensioner Lower To Alternator Bracket
M8 x 1.25 x 35
LSJ Tensioner Upper To Alternator Bracket
M8 X 1.25 x 40… not standard bolt though. Has to be metric hex socket bolt.
LSJ SC Reservoir Bracket To SC
M6 x 1.0 x 15 (Qty 2)
LSJ SC Reservoir To SC Reservoir Bracket
M6 x 1.0 x 15 (Qty 2)
End of bare essentials list to supercharge your 2.2 or 2.4. The rest of the list below is simply optional.
------------------------------------------------------------------------------------------------------------------------------------------
Exhaust Parts (Optional)
GM Parts
90537953 – LSJ Exhaust Manifold Heat Shield
15231157 – LSJ Downpipe To Cat Back Gasket
15235773 – LSJ Exhaust Manifold To Downpipe Gasket
Use your stock 2.2 or 2.4 exhaust manifold gasket, or buy new, as if you used the LSJ exhaust manifold gasket it wouldn’t fit properly and you would have an exhaust leak and/or noise.
Used Parts
Stock LSJ Downpipe
Stock LSJ Exhaust Manifold
The stock LSJ downpipe works on any manual shift car. It does not fit the automatic because of the way the automatic engine sits in the vehicle.
The LSJ exhaust manifold and LSJ downpipe are much bigger to allow more exhaust to exit the engine. This is important as you are forcing more air into the engine with the supercharger so you need to provide adequate output as well. Feel free to purchase your aftermarket selection of header/dp combo.
Windshield Wiper Conversion (Optional)
GM Parts
22729469 – LSJ Windshield Washer Container
22732432 – LSJ Wiper Cowl To Washer Container Hose
You’re moving the LSJ air intake to the left side of the vehicle and that is where the 2.2 and 2.4 windshield wiper container is. The container I listed includes a new pump, grommet, cap and hose to attach to wiper cowl hose. The wiper cowl to container hose I list is the original GM hose on the LSJ that goes from the left side of the wiper cowl (where ours is) and takes it to the right side where it meets up with the LSJ washer container that I list. As far as the connector for the pump, I cut the end of the connector off and added new wire to loom it from the left side of the car to the right side of the car to the new container location. I ran the loom across the top of the inside of the radiator support where there is already a loom running for something else. I ran it inside its own loom and wire tired to the existing loom.
cobalt123
Platinum Member
42 lb injectors came in today and the harness
10000k hids came in yesterday and were quickly installed
10000k hids came in yesterday and were quickly installed
cobalt123
Platinum Member

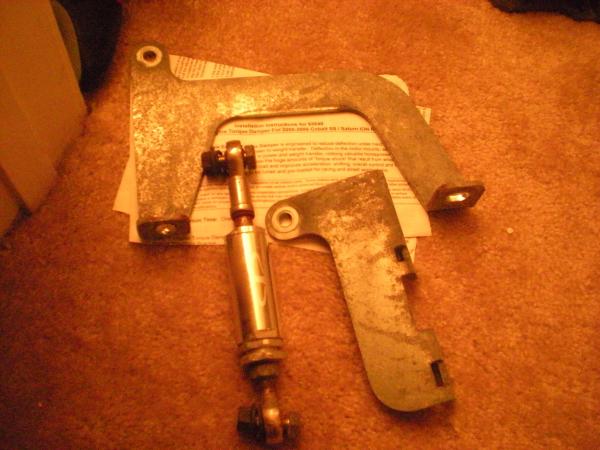

uploading now
---------- Post added at 02:31 AM ---------- Previous post was at 02:31 AM ----------
uploading now...
---------- Post added at 02:34 AM ---------- Previous post was at 02:31 AM ----------
---------- Post added at 03:08 AM ---------- Previous post was at 02:34 AM ----------
Quantity
Description
Unit Price
Subtotal
1 piece
#6713 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 6mm x 1.0 x 25mm
$0.19
$0.19
1 piece
#6751 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 10mm x 1.5 x 50mm
$0.71
$0.71
1 piece
#11970 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 10mm x 1.5 x 50mm
$0.67
$0.67
3 pieces
#6730 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 8mm x 1.25 x 25mm
$0.31
$0.93
3 pieces
#11955 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 8mm x 1.25 x 35mm
$0.35
$1.05
3 pieces
#6732 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 8mm x 1.25 x 35mm
$0.39
$1.17
1 piece
#11975 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 10mm x 1.5 x 75mm *
$0.97
$0.97
1 piece
#6756 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 10mm x 1.5 x 75mm
$0.98
$0.98
2 pieces
#11999 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 6mm x 1.0 x 75mm (plain finish)
$0.42
$0.84
2 pieces
#6723 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 6mm x 1.0 x 75mm
$0.45
$0.90
2 pieces
#6729 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 8mm x 1.25 x 20mm
$0.28
$0.56
1 piece
#6565 - Metric socket head screws, Steel grade 12.9, 8mm x 1.25 x 40mm
$0.36
$0.36
4 pieces
#6711 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 6mm x 1.0 x 16mm
$0.15
$0.60
3 pieces
#6237 - Metric hex bolts, Metric standard bolts, Steel grade 8.8, 8mm x 1.25 x 130mm
$1.15
$3.45
---------- Post added at 02:31 AM ---------- Previous post was at 02:31 AM ----------
uploading now...
---------- Post added at 02:34 AM ---------- Previous post was at 02:31 AM ----------
---------- Post added at 03:08 AM ---------- Previous post was at 02:34 AM ----------
Quantity
Description
Unit Price
Subtotal
1 piece
#6713 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 6mm x 1.0 x 25mm
$0.19
$0.19
1 piece
#6751 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 10mm x 1.5 x 50mm
$0.71
$0.71
1 piece
#11970 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 10mm x 1.5 x 50mm
$0.67
$0.67
3 pieces
#6730 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 8mm x 1.25 x 25mm
$0.31
$0.93
3 pieces
#11955 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 8mm x 1.25 x 35mm
$0.35
$1.05
3 pieces
#6732 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 8mm x 1.25 x 35mm
$0.39
$1.17
1 piece
#11975 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 10mm x 1.5 x 75mm *
$0.97
$0.97
1 piece
#6756 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 10mm x 1.5 x 75mm
$0.98
$0.98
2 pieces
#11999 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 6mm x 1.0 x 75mm (plain finish)
$0.42
$0.84
2 pieces
#6723 - Metric hex bolts, Metric standard bolts, Steel grade 10.9, 6mm x 1.0 x 75mm
$0.45
$0.90
2 pieces
#6729 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 8mm x 1.25 x 20mm
$0.28
$0.56
1 piece
#6565 - Metric socket head screws, Steel grade 12.9, 8mm x 1.25 x 40mm
$0.36
$0.36
4 pieces
#6711 - Metric hex bolts, Metric full thread (tap) bolts, Steel grade 10.9, 6mm x 1.0 x 16mm
$0.15
$0.60
3 pieces
#6237 - Metric hex bolts, Metric standard bolts, Steel grade 8.8, 8mm x 1.25 x 130mm
$1.15
$3.45
cobalt123
Platinum Member
im gonna use hack my stocker with those...what pigtail the lsj connector plug....
cobalt123
Platinum Member
o ill check and make sure
---------- Post added at 03:33 AM ---------- Previous post was at 03:26 AM ----------
---------- Post added at 03:33 AM ---------- Previous post was at 03:26 AM ----------
cobalt123
Platinum Member
thats wut i planned, wait. which stock injector harness the l61s or the lsj
im guessing the L61 cuz it has to match the rest of the electrical harness?
im guessing the L61 cuz it has to match the rest of the electrical harness?
